Expandable Breathing Circuit with Additional Limb and Bag
REF HUAKUN-B0546 … HUAKUN-B0053Expandable anaesthesia breathing circuit supplied with an additional limb and a latex-free reservoir bag, available in a range of lengths, limb lengths and bag volumes to suit adult and paediatric use.
- references
- 8
- Circuit length
- 160 cm · 180 cm · 300 cm
- Packaging
- carton 10–50
- Unit of sale
- pcs
- GTIN
- On every reference
Request an offerTick references, paste the lot quantity. Offer within 48 h; technical file after verification.
Selected references0 / 8
Instructions for use (EN)Verified partnersOn request
Declaration of ConformityEU MDR 2017/745On request
Product datasheetVerified partnersOn request
How to get documentation →References and packaging
All references in one table. GTIN is the unit barcode; box and carton quantities are what ships.
| REF | Circuit length | Bag capacity | Additional limb | GTIN | carton | |
|---|---|---|---|---|---|---|
| HUAKUN-B0546 | 160 cm | 1L | 100 cm | 6941850890806 | 50 | |
| HUAKUN-B0050 | 160 cm | 2L | 100 cm | 5903719304474 | 40 | |
| HUAKUN-B0051 | 180 cm | 2L | 120 cm | 6941850890783 | 50 | |
| HUAKUN-B0051-1 | 180 cm | 3L | 120 cm | 5903719312196 | 50 | |
| HUAKUN-B0052 | 180 cm | 2L | 150 cm | 6941850890790 | 50 | |
| HUAKUN-B0027 | 300 cm | 2L | 150 cm | 6941850890776 | 10 | |
| HUAKUN-B0027-1 | 300 cm | 2L | 160 cm | 5903719314299 | 10 | |
| HUAKUN-B0053 | 180 cm | 2L | 180 cm | 6941850891025 | 50 |
Unit of sale: pcsOffer for selected
Description
Breathing Circuits
Expandable Breathing Circuit with Additional Limb and Reservoir Bag
Expandable anaesthesia breathing circuit supplied with an additional limb and a latex-free reservoir bag, available in a range of lengths, limb lengths and bag volumes to suit adult and paediatric use.
Quality & Compliance
- CE-marked medical device, compliant with EU MDR 2017/745.
- Declaration of Conformity available on request.
- Original HUAKUN product, supplied by SINMED Poland.
Specifications
| Type | Expandable |
| Reservoir bag | Latex-free (1 to 3 l, see options) |
| Additional limb | Included |
| Connections | ISO-compliant |
| Use | Single use |
| Manufacturer | Huakun |
Features
- Expandable tubing adjusts to the required length
- Additional limb and latex-free reservoir bag included
- Range of lengths, limb lengths and bag volumes
- Leak-resistant construction minimises the risk of disconnection in the circuit
- Transparent Y-piece and ported elbow allow easy observation of gas flow
- All connections comply with ISO standards
Ordering information

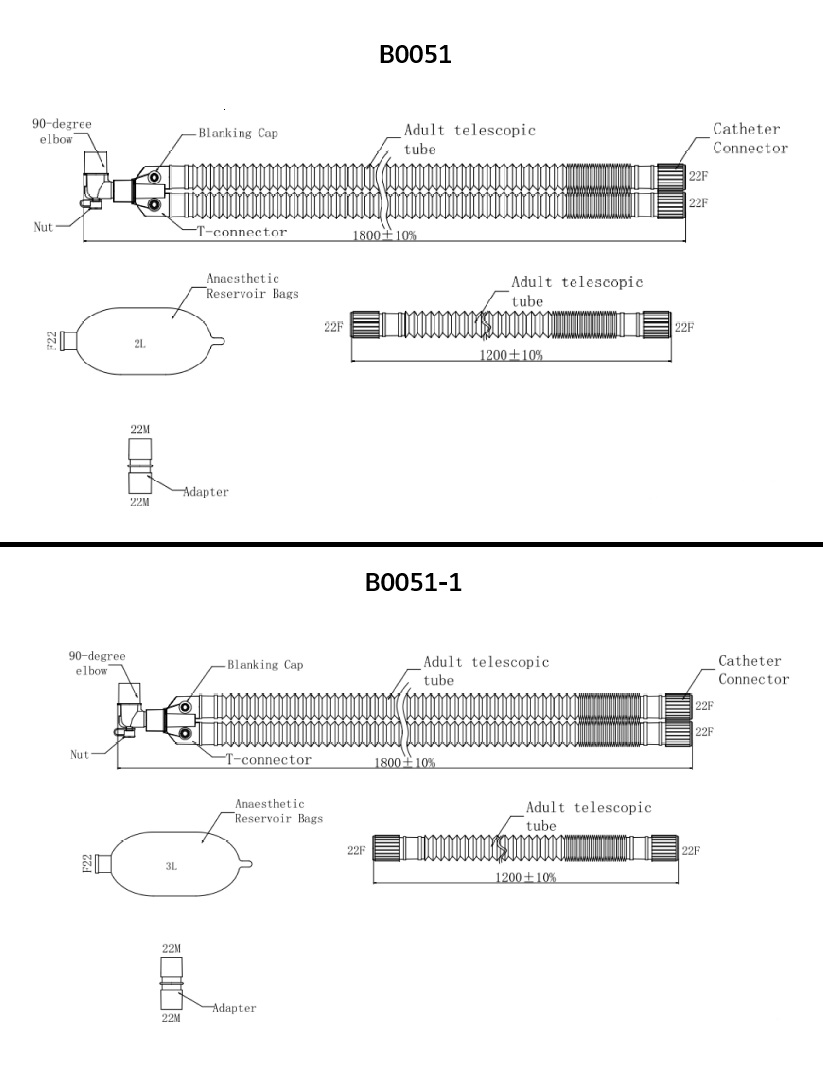

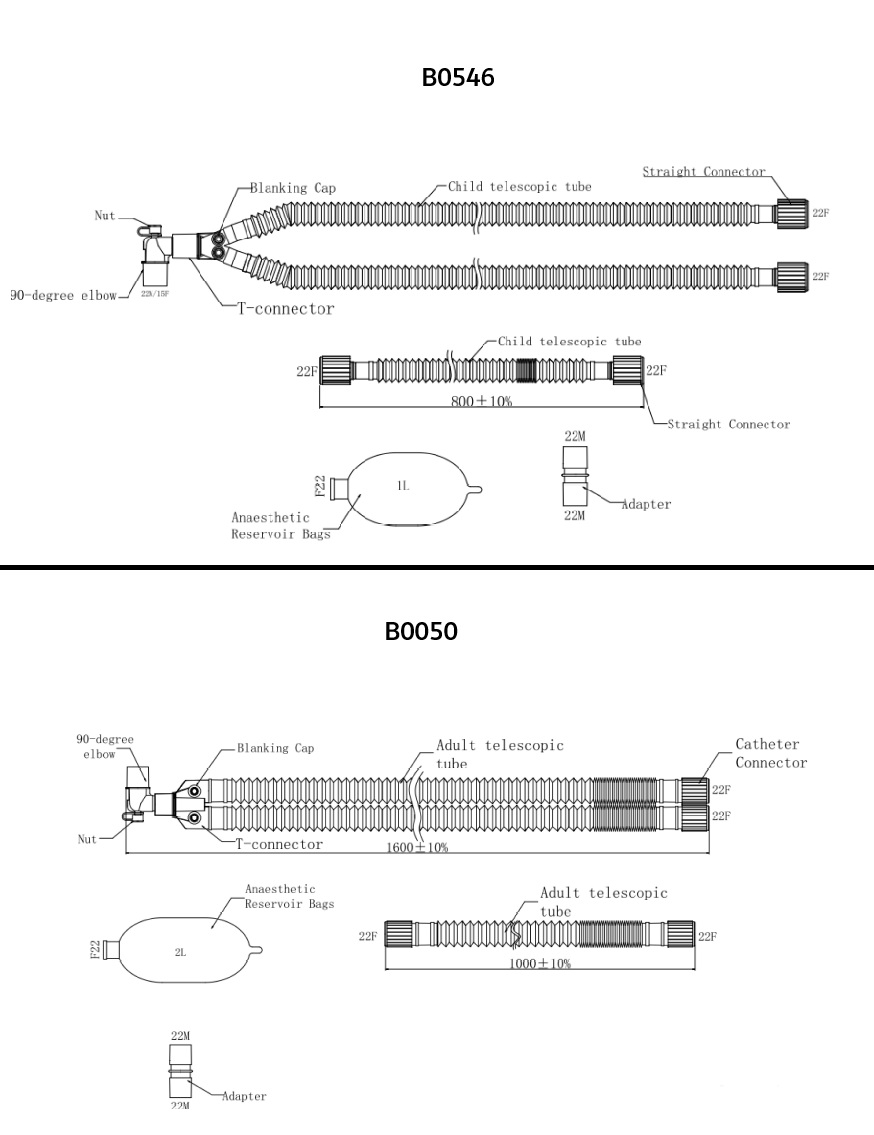

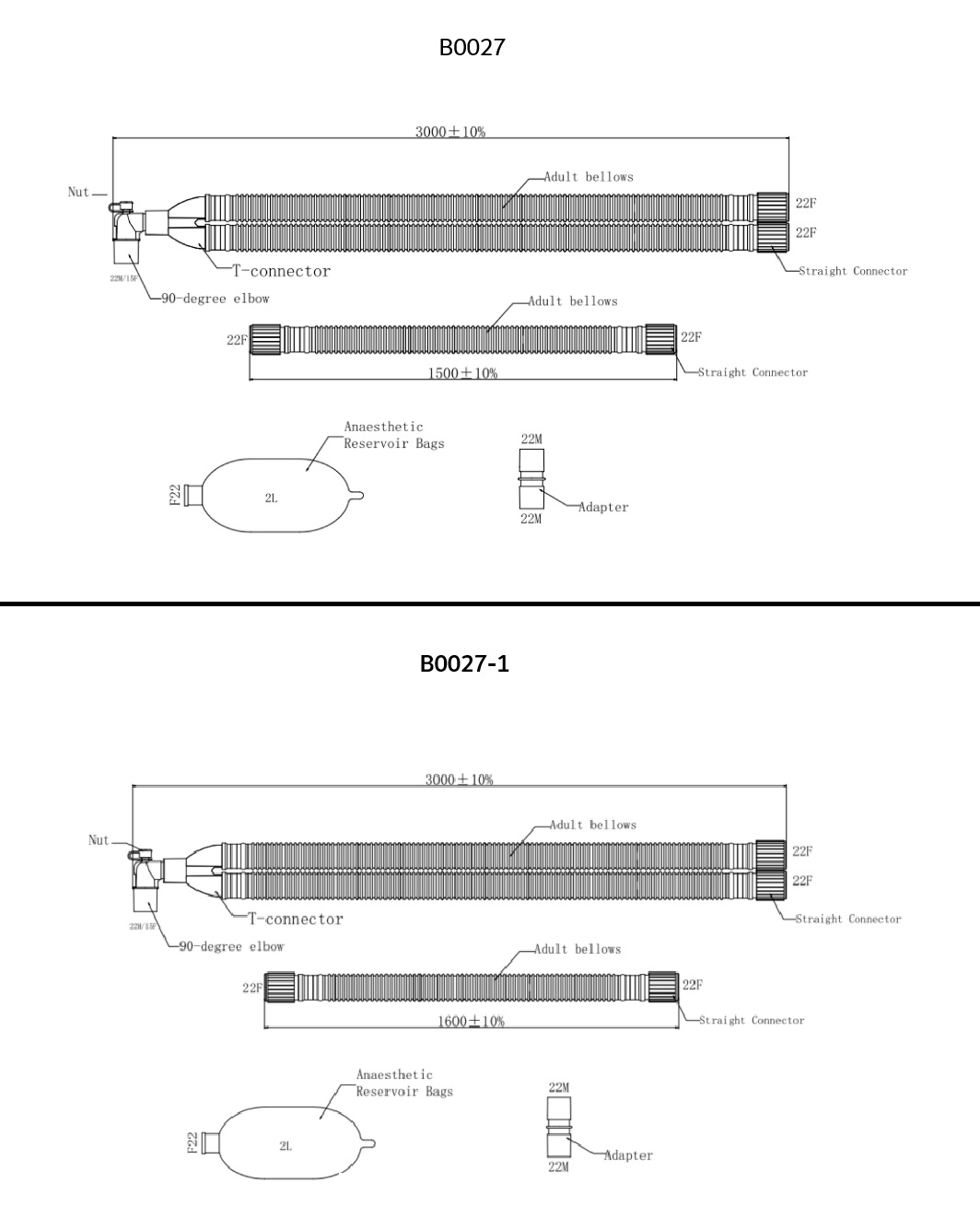

| REF | Total length | Additional limb | Bag |
| HUAKUN-B0027 | 300 cm | 150 cm | 2L |
| HUAKUN-B0027-1 | 300 cm | 160 cm | 2L |
| HUAKUN-B0050 | 160 cm | 100 cm | 2L |
| HUAKUN-B0051 | 180 cm | 120 cm | 2L |
| HUAKUN-B0051-1 | 180 cm | 120 cm | 3L |
| HUAKUN-B0052 | 180 cm | 150 cm | 2L |
| HUAKUN-B0053 | 180 cm | 180 cm | 2L |
| HUAKUN-B0546 | 160 cm | 100 cm | 1L |
Applications: Anaesthesia • Mechanical ventilation • Operating theatre • Intensive care
Usage & handling
- Supplied sterile, single use only; do not reuse or re-sterilise
