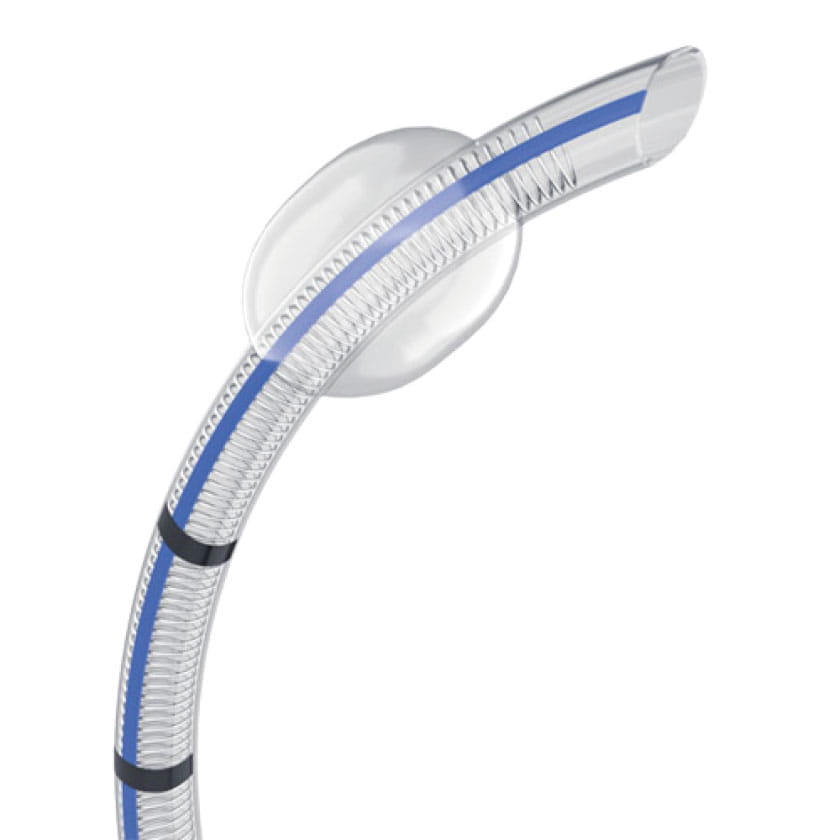

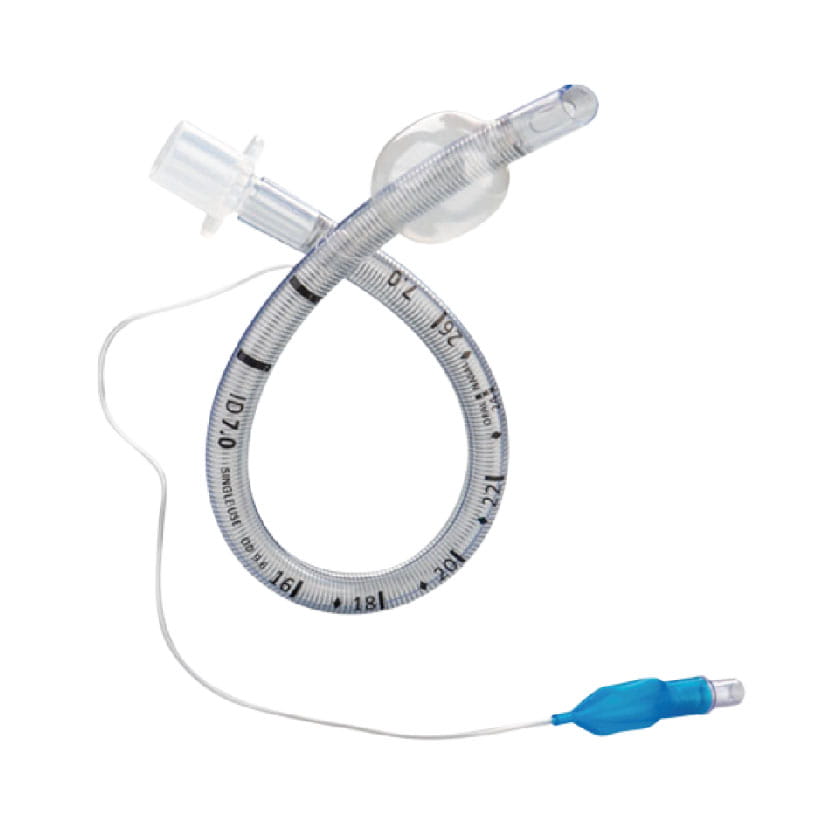

Reinforced Endotracheal Tube with Cuff, without Stylet
REF BONREE-214 30 00 2 … BONREE-214 90 00 2Oral/nasal Murphy-type reinforced cuffed endotracheal tube made of medical-grade PVC, wire-reinforced along its full length and supplied without a stylet.
- references
- 13
- Size
- 3.0 · 3.5 · 4.0 · 4.5 · 5.0 · 5.5 · 6.0 · 6.5 …
- Packaging
- box 25 · carton 200
- Unit of sale
- pcs
- GTIN
- On every reference
Request an offerTick references, paste the lot quantity. Offer within 48 h; technical file after verification.
Selected references0 / 13
Instructions for use (EN)Verified partnersOn request
Declaration of ConformityEU MDR 2017/745On request
Product datasheetVerified partnersOn request
How to get documentation →References and packaging
All references in one table. GTIN is the unit barcode; box and carton quantities are what ships.
| REF | Size | GTIN | box | carton | |
|---|---|---|---|---|---|
| BONREE-214 30 00 2 | 3.0 | 6942382604947 | 25 | 200 | |
| BONREE-214 35 00 2 | 3.5 | 5903719316415 | 25 | 200 | |
| BONREE-214 40 00 2 | 4.0 | 5903719314763 | 25 | 200 | |
| BONREE-214 45 00 2 | 4.5 | 5903719314794 | 25 | 200 | |
| BONREE-214 50 00 2 | 5.0 | 6942382604985 | 25 | 200 | |
| BONREE-214 55 00 2 | 5.5 | 5903719300926 | 25 | 200 | |
| BONREE-214 60 00 2 | 6.0 | 6942382605005 | 25 | 200 | |
| BONREE-214 65 00 2 | 6.5 | 6942382605012 | 25 | 200 | |
| BONREE-214 70 00 2 | 7.0 | 6942382605029 | 25 | 200 | |
| BONREE-214 75 00 2 | 7.5 | 6942382605036 | 25 | 200 | |
| BONREE-214 80 00 2 | 8.0 | 5903719300971 | 25 | 200 | |
| BONREE-214 85 00 2 | 8.5 | 6942382605050 | 25 | 200 | |
| BONREE-214 90 00 2 | 9.0 | 5903719300995 | 25 | 200 |
Unit of sale: pcsOffer for selected
Description
Airway / Endotracheal Tubes
Reinforced Endotracheal Tube with Cuff (without Stylet)
Oral/nasal Murphy-type reinforced cuffed endotracheal tube made of medical-grade PVC, wire-reinforced along its full length and supplied without a stylet.
Quality & Compliance
- CE-marked medical device, compliant with EU MDR 2017/745.
- Declaration of Conformity available on request.
- Original Bonree product, supplied by SINMED Poland.
Specifications
| Type | Murphy, oral/nasal |
| Material | Medical-grade PVC, transparent |
| Reinforcement | Wire-reinforced full length, kink-resistant |
| Cuff | High-volume, low-pressure |
| Stylet | Without stylet |
| Radiopaque line | Full length |
| Depth markers | Double depth marker (two half-rings) |
| Scale | Graduated every 1 cm |
| Pilot balloon | Marked with tube size, cuff diameter and LOT number |
Features
- Wire-reinforced along the full length, kink-resistant
- High-volume, low-pressure cuff
- Radiopaque line along the full length of the tube
- Double depth marker (two half-rings)
- Graduated every 1 cm
- Pilot balloon marked with tube size, cuff diameter and LOT number
Ordering information
| REF | ID | OD |
| BONREE-214 30 00 2 | 3.0 mm | 5.3 mm |
| BONREE-214 35 00 2 | 3.5 mm | 5.8 mm |
| BONREE-214 40 00 2 | 4.0 mm | 6.3 mm |
| BONREE-214 45 00 2 | 4.5 mm | 6.8 mm |
| BONREE-214 50 00 2 | 5.0 mm | 7.3 mm |
| BONREE-214 55 00 2 | 5.5 mm | 7.8 mm |
| BONREE-214 60 00 2 | 6.0 mm | 8.4 mm |
| BONREE-214 65 00 2 | 6.5 mm | 9.0 mm |
| BONREE-214 70 00 2 | 7.0 mm | 9.6 mm |
| BONREE-214 75 00 2 | 7.5 mm | 10.2 mm |
| BONREE-214 80 00 2 | 8.0 mm | 10.8 mm |
| BONREE-214 85 00 2 | 8.5 mm | 11.3 mm |
| BONREE-214 90 00 2 | 9.0 mm | 11.9 mm |
Usage & handling
- Sterile, single-use
