Dead Space Connector smooth bore, 15 cm
REF HUAKUN-A50238 … HUAKUN-A50038Smooth-bore dead-space extension connector for anaesthesia and ventilation circuits. The smooth internal lumen lowers resistance; includes a self-sealing suction port and a closable bronchoscopy port.
- references
- 2
- Connector type
- 15F/22M-15F · 15F/22M-22F
- Packaging
- carton 250
- Unit of sale
- pcs
- GTIN
- On every reference
Request an offerTick references, paste the lot quantity. Offer within 48 h; technical file after verification.
Selected references0 / 2
Instructions for use (EN)Verified partnersOn request
Declaration of ConformityEU MDR 2017/745On request
Product datasheetVerified partnersOn request
How to get documentation →References and packaging
All references in one table. GTIN is the unit barcode; box and carton quantities are what ships.
| REF | Connector type | GTIN | carton | |
|---|---|---|---|---|
| HUAKUN-A50238 | 15F/22M-15F | 5903719313773 | 250 | |
| HUAKUN-A50038 | 15F/22M-22F | 5903719304771 | 250 |
Unit of sale: pcsOffer for selected
Description
Dead-Space Connectors
Dead-Space Connector, Smooth Bore, 15 cm
Smooth-bore dead-space extension connector for anaesthesia and ventilation circuits. The smooth internal lumen lowers resistance; includes a self-sealing suction port and a closable bronchoscopy port.
Quality & Compliance
- CE-marked medical device, compliant with EU MDR 2017/745.
- Declaration of Conformity available on request.
- Original HUAKUN product, supplied by SINMED Poland.
Specifications
| Tubing | Smooth inside |
| Length | 15 cm |
| Suction port | Yes, self-sealing, capped |
| Bronchoscopy port | Yes, closable |
| Swivel | Double-swivel, 90° connector |
| Use | Single use |
| Packaging | 250 pcs per case |
| Manufacturer | Huakun |
Features
- Smooth internal lumen for low resistance
- Self-sealing suction port with cap, suctioning without breaking the circuit
- Closable bronchoscopy port
- Double-swivel with a 90° angled intubation connector
- Moves the breathing system away from the patient to reduce resistance on the ET tube / LMA

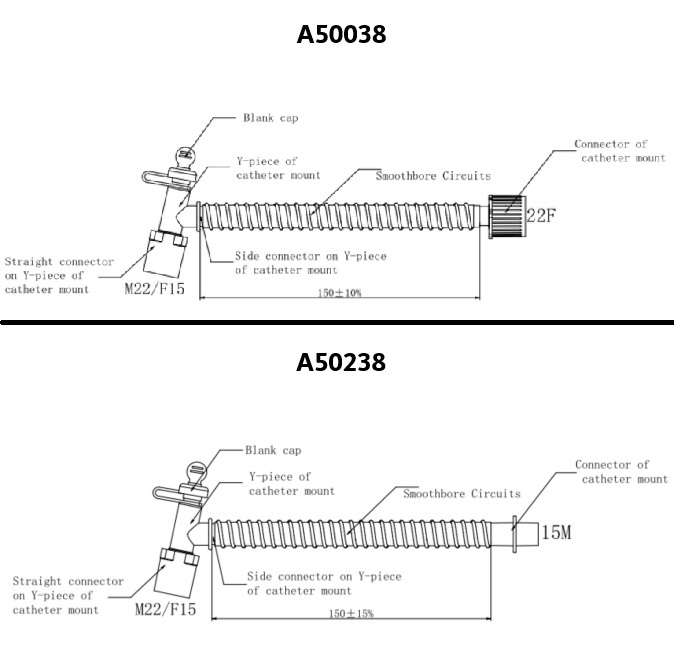

Ordering information
| REF | Length | Connection |
| HUAKUN-A50038 | 15 cm | 15F/22M-22F |
| HUAKUN-A50238 | 15 cm | 15F/22M-15F |
Applications: Anaesthesia breathing circuits • Mechanical ventilation • Airway management
Usage & handling
- Supplied sterile, single use only; do not reuse or re-sterilise
