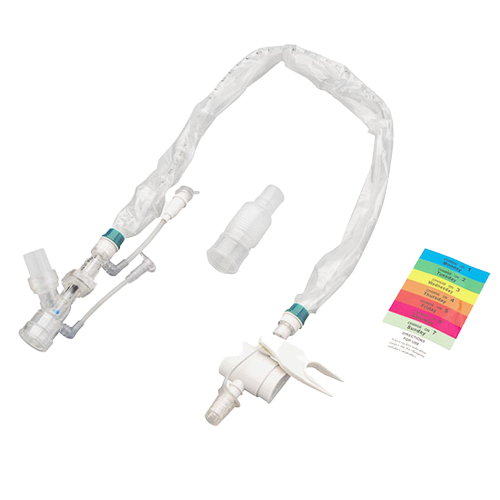

Closed Suction System 72H
REF BONREE-239 72 12 2 … BONREE-239 72 24 2Closed in-line tracheal suction system for use up to 72 hours, available in catheter sizes for both endotracheal and tracheostomy tubes.
- references
- 6
- Size
- CH12 · CH14 · CH16
- Packaging
- box 10 · carton 100
- Unit of sale
- pcs
- GTIN
- On every reference
Request an offerTick references, paste the lot quantity. Offer within 48 h; technical file after verification.
Selected references0 / 6
Instructions for use (EN)Verified partnersOn request
Declaration of ConformityEU MDR 2017/745On request
Product datasheetVerified partnersOn request
How to get documentation →References and packaging
All references in one table. GTIN is the unit barcode; box and carton quantities are what ships.
| REF | Size | Application | GTIN | box | carton | |
|---|---|---|---|---|---|---|
| BONREE-239 72 12 2 | CH12 | For intubation tube | 5903719311724 | 10 | 100 | |
| BONREE-239 72 22 2 | CH12 | For tracheostomy tube | 5903719311755 | 10 | 100 | |
| BONREE-239 72 13 2 | CH14 | For intubation tube | 5903719313001 | 10 | 100 | |
| BONREE-239 72 23 2 | CH14 | For tracheostomy tube | 5903719311786 | 10 | 100 | |
| BONREE-239 72 14 2 | CH16 | For intubation tube | 5903719312974 | 10 | 100 | |
| BONREE-239 72 24 2 | CH16 | For tracheostomy tube | 5903719312943 | 10 | 100 |
Unit of sale: pcsOffer for selected
Description
Airway / Closed Suction Systems
Closed Suction System 72H
Closed in-line tracheal suction system for use up to 72 hours, available in catheter sizes for both endotracheal and tracheostomy tubes.
Quality & Compliance
- CE-marked medical device, compliant with EU MDR 2017/745.
- Declaration of Conformity available on request.
- Original Bonree product, supplied by SINMED Poland.
Specifications
| In-use period | Up to 72 hours |
| Integrated connector | Double-swivel |
| Catheter tip | Atraumatic soft blue tip |
| Suction control | Suction force control valve, lockable |
| MDI port | Yes, Luer (medication delivery) |
| Irrigation port | Rotating, with one-way valve |
| Latex | Latex-free |

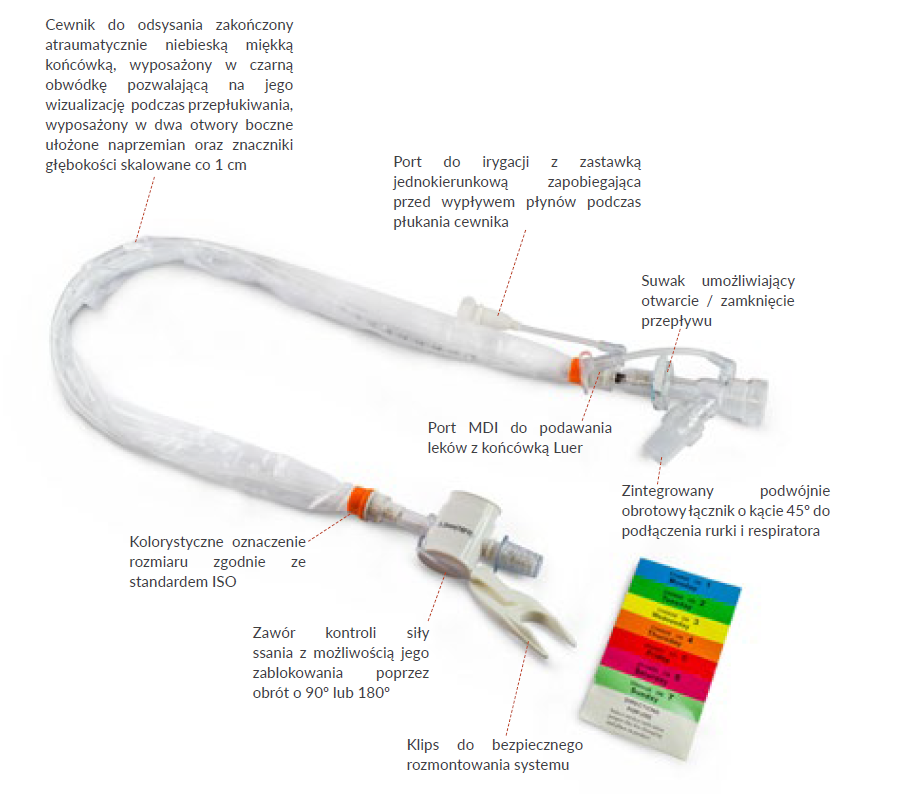

Features
- Rotating irrigation/flush port with one-way valve
- Integrated double-swivel 45 degrees connector for tube and ventilator
- Closable Luer MDI port for medication delivery
- Transparent chamber for observation of patient secretions
- Suction force control valve marked with catheter size, lockable by 90 or 180 degrees rotation
- Slider to fully open/close flow without dismantling the system
- Catheter with atraumatic soft blue tip and two staggered side holes, scaled every 1 cm
- ISO colour-coded catheter size
- Clip for safe disconnection of the system from the tube
Ordering information
| REF | Catheter size | Length | Intended use |
| BONREE-239 72 12 2 | 12 FR (4.05 mm) | 600 mm | For endotracheal tube |
| BONREE-239 72 13 2 | 14 FR (4.75 mm) | 600 mm | For endotracheal tube |
| BONREE-239 72 14 2 | 16 FR (5.45 mm) | 600 mm | For endotracheal tube |
| BONREE-239 72 22 2 | 12 FR (4.05 mm) | 330 mm | For tracheostomy tube |
| BONREE-239 72 23 2 | 14 FR (4.75 mm) | 330 mm | For tracheostomy tube |
| BONREE-239 72 24 2 | 16 FR (5.45 mm) | 330 mm | For tracheostomy tube |
Applications: Endotracheal tube suction • Tracheostomy tube suction
Usage & handling
- Sterile, latex-free
