Dead Space Connector Corrugated, 15F/22M-22F
REF HUAKUN-A50032 … HUAKUN-A50033Corrugated dead-space extension connector for anaesthesia and ventilation circuits. Distances the breathing system from the patient and adds a self-sealing suction port and a closable bronchoscopy port.
- references
- 2
- Length
- 15 cm · 20 cm
- Packaging
- carton 250
- Unit of sale
- pcs
- GTIN
- On every reference
Request an offerTick references, paste the lot quantity. Offer within 48 h; technical file after verification.
Selected references0 / 2
Instructions for use (EN)Verified partnersOn request
Declaration of ConformityEU MDR 2017/745On request
Product datasheetVerified partnersOn request
How to get documentation →References and packaging
All references in one table. GTIN is the unit barcode; box and carton quantities are what ships.
| REF | Length | GTIN | carton | |
|---|---|---|---|---|
| HUAKUN-A50032 | 15 cm | 6941850890721 | 250 | |
| HUAKUN-A50033 | 20 cm | 5903719309615 | 250 |
Unit of sale: pcsOffer for selected
Description
Dead-Space Connectors

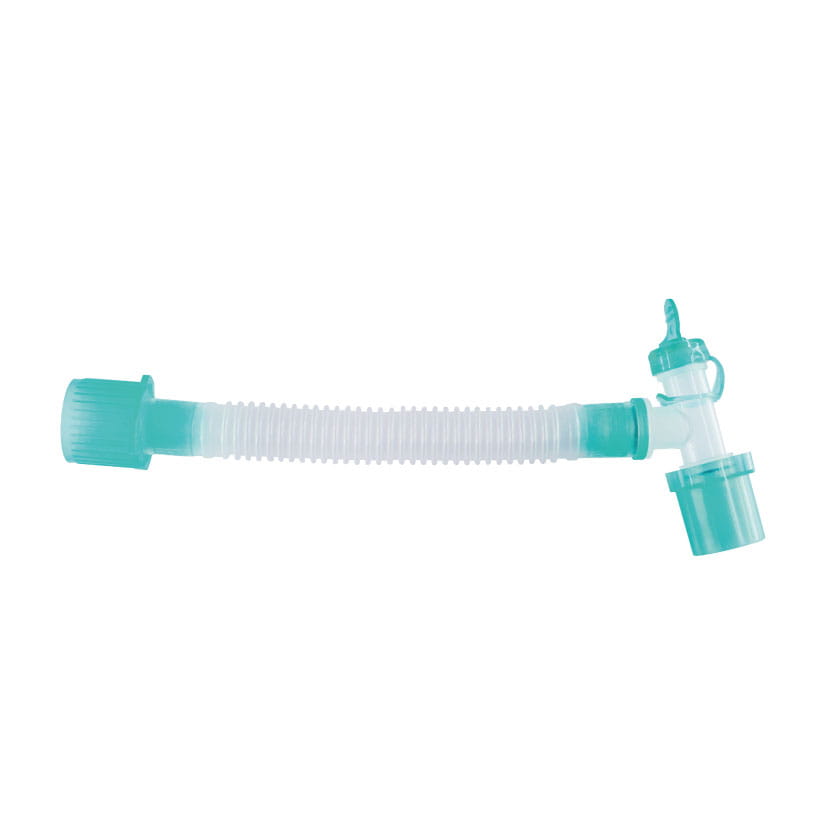

Dead-Space Connector, Corrugated
Corrugated dead-space extension connector for anaesthesia and ventilation circuits. Distances the breathing system from the patient and adds a self-sealing suction port and a closable bronchoscopy port.
Quality & Compliance
- CE-marked medical device, compliant with EU MDR 2017/745.
- Declaration of Conformity available on request.
- Original HUAKUN product, supplied by SINMED Poland.
Specifications
| Tubing | Corrugated |
| Connection | 15F/22M, 22F |
| Suction port | Yes, self-sealing, capped |
| Bronchoscopy port | Yes, closable |
| Swivel | Double-swivel, 90° connector |
| Use | Single use |
| Packaging | 250 pcs per case |
| Manufacturer | Huakun |
Features
- Self-sealing suction port with cap, suctioning without breaking the circuit
- Closable bronchoscopy port
- Double-swivel with a 90° angled intubation connector
- Moves the breathing system away from the patient to reduce resistance on the ET tube / LMA
Ordering information

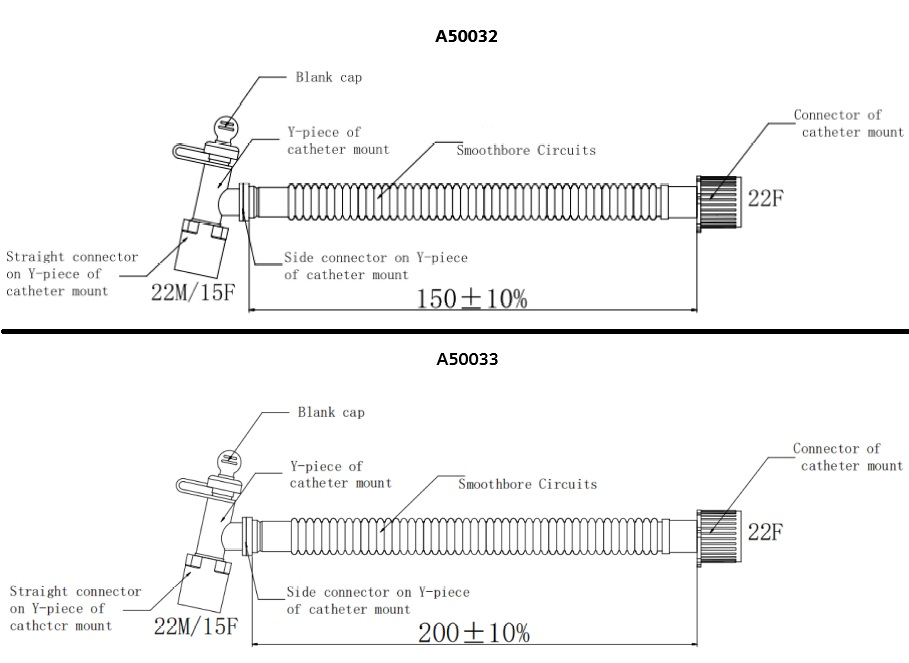

| REF | Length | Connection |
| HUAKUN-A50032 | 15 cm | 15F/22M-22F |
| HUAKUN-A50033 | 20 cm | 15F/22M-22F |
Applications: Anaesthesia breathing circuits • Mechanical ventilation • Airway management
Usage & handling
- Supplied sterile, single use only; do not reuse or re-sterilise
